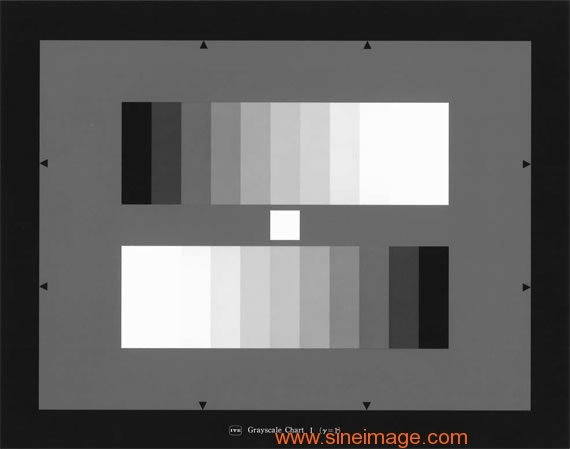

JEITA灰階測試卡（灰度γ=2.2）
品牌：DNP/Sine Image
型號(hào)：JEITA
比例：16:9
1、灰度的透明/反射率和密度請參考下表。
| 步驟 | 1(白) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 背景 |
| 反射率(%) | 89.9 | 77.3 | 63.0 | 48.6 | 37.8 | 27.9 | 19.8 | 13.0 | 8.1 | 4.5 | 2.0 | 18.0 |
| 密度 | 0.05 | 0.11 | 0.20 | 0.31 | 0.42 | 0.55 | 0.70 | 0.89 | 1.09 | 1.35 | 1.70 | 0.74 |
2、步驟1的反射率值89.9％將波動(dòng)到按照基材80％左右。
1.Please refer to transparent / reflection ratio and density of grayscale in following table.
| Step Number |
1 (white) |
2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | Background |
| Reflection Ratio(%) | 89.9 | 77.3 | 63.0 | 48.6 | 37.8 | 27.9 | 19.8 | 13.0 | 8.1 | 4.5 | 2.0 | 18.0 |
| Density | 0.05 | 0.11 | 0.20 | 0.31 | 0.42 | 0.55 | 0.70 | 0.89 | 1.09 | 1.35 | 1.70 | 0.74 |
2.The value of reflection ratio of step 1 89.9% will be fluctuated to approx 80% in accordance with the base material.
